This document was generated on 11/11/2013
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
87783-0202
Active
0.60mm Pitch miniDIMM DDR Socket, Surface Mount, 22.5° Angle, 0.76μm Gold (Au)
Plating, Off-White Latches, with Pick-and-Place Cap, 200 Circuits, 2.5V Voltage Key,
Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87783-001 (PDF)
Application Specification AS-87782-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series

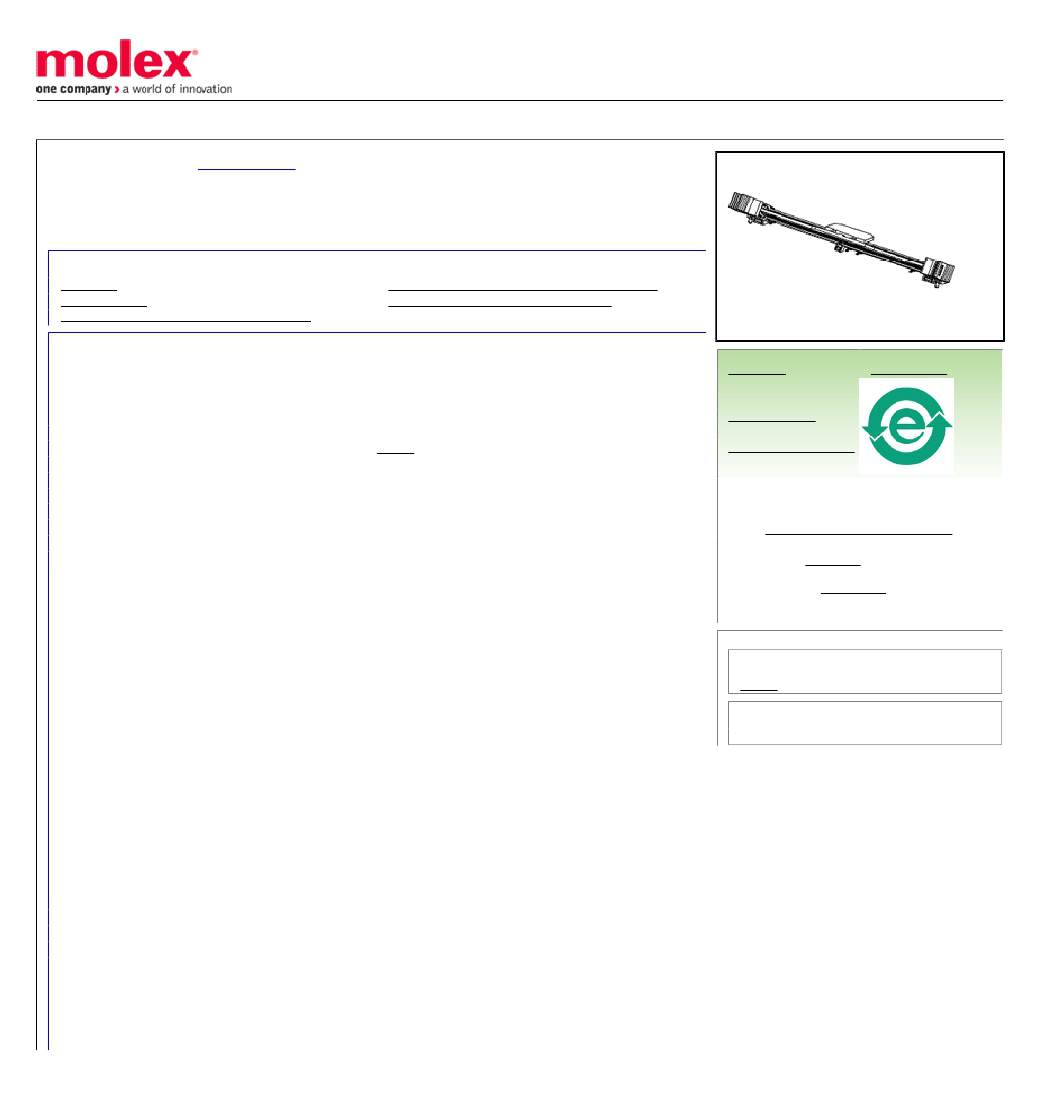

image - Reference only
Agency Certification
CSA
UL
LR19980
E29179
EU RoHS
ELV and RoHS
China RoHS
Compliant
General
REACH SVHC
Product Family
Series
Comments
Component Type
Electrical Model
JEDEC Outline
Product Name
UPC
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Voltage Key
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
Memory Module Sockets
87783
<LI>Latches in Off-White Color
Socket
Yes
MO-258
MiniDIMM
822350075121
200
Black
25
22.5° Angle
94V-0
Yes
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
5.891/g
Yes
Yes
Tray
0.60mm
0.762μm
2.540μm
-55°C to +85°C
Surface Mount
1A
30V
2.5V
5
Reflow Capable (SMT only)
2
260
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
87783Series
Mates With
JEDEC MO-258 Modules
